  • NTHD3101FT3

  • Manufacturer : ON Semiconductor
    Packaging : Tape & Reel (TR)
    Part Status : Obsolete
    FET Type : P-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 20V
    Current - Continuous Drain (Id) @ 25°C : 3.2A (Tj)
    Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
    Rds On (Max) @ Id, Vgs : 80 mOhm @ 3.2A, 4.5V
    Vgs(th) (Max) @ Id : 1.5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 4.5V
    Vgs (Max) : ±8V
    Input Capacitance (Ciss) (Max) @ Vds : 680pF @ 10V
    FET Feature : Schottky Diode (Isolated)
    Power Dissipation (Max) : 1.1W (Ta)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount

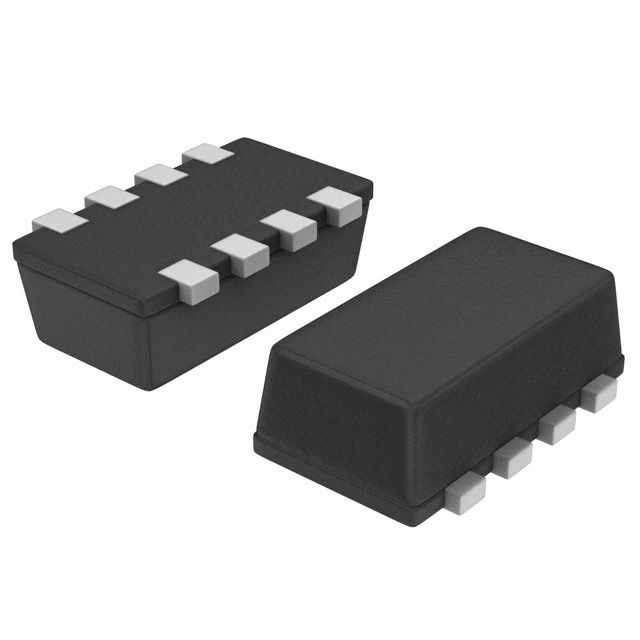

    Supplier Device Package : ChipFET?
    Package / Case : 8-SMD, Flat Lead
