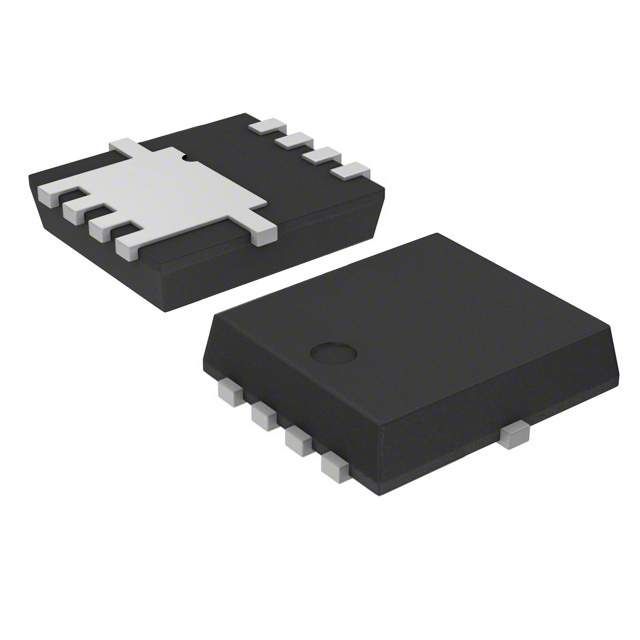

  • STL8P4LLF6

  • Manufacturer : STMicroelectronics
    Packaging : Cut Tape (CT)
    Alternate Packaging
    Series : STripFET? F6
    Part Status : Active
    FET Type : P-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 40V
    Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
    Rds On (Max) @ Id, Vgs : 20.5 mOhm @ 4A, 10V
    Vgs(th) (Max) @ Id : 2.5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 22nC @ 4.5V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 2850pF @ 25V
    Power Dissipation (Max) : 2.9W (Ta)
    Operating Temperature : 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : PowerFlat? (3.3x3.3)
    Package / Case : 8-PowerVDFN
