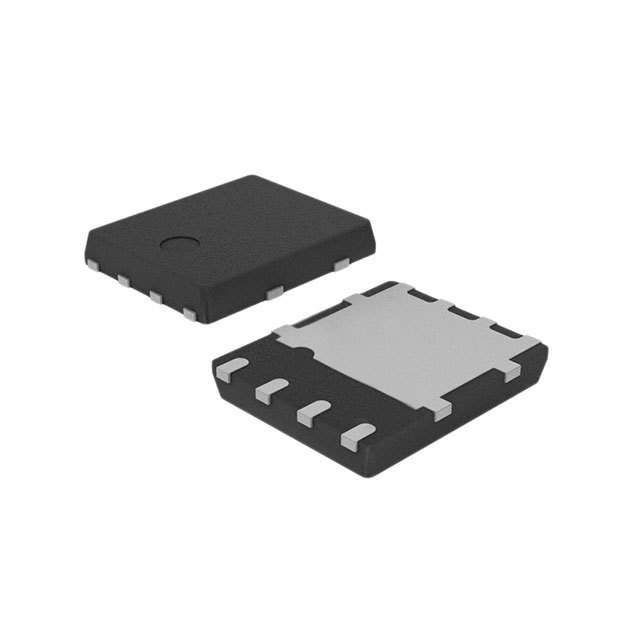

  • STL86N3LLH6AG

  • Manufacturer : STMicroelectronics
    Packaging : Cut Tape (CT)
    Alternate Packaging
    Series : Automotive, AEC-Q101, STripFET? H6
    Part Status : Discontinued at Digi-Key
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 30V
    Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
    Rds On (Max) @ Id, Vgs : 5.2 mOhm @ 10.5A, 10V
    Vgs(th) (Max) @ Id : 2.5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 17nC @ 4.5V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 2030pF @ 25V
    Power Dissipation (Max) : 4W (Ta), 60W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : PowerFlat? (5x6)
    Package / Case : 8-PowerVDFN
