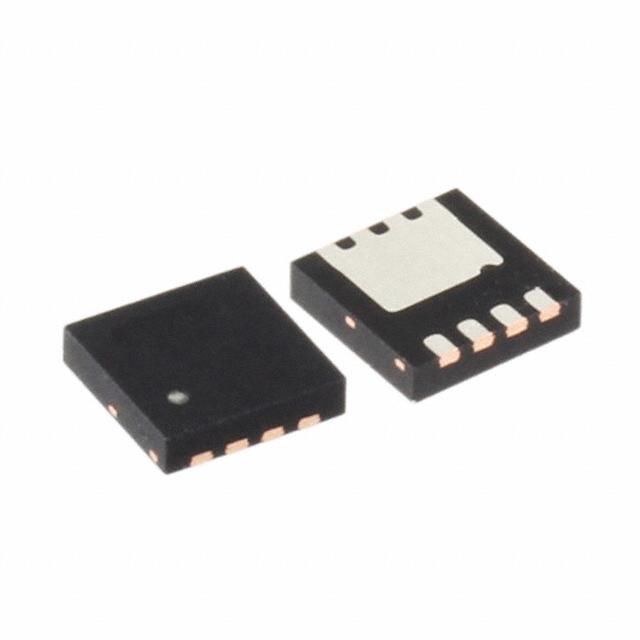

  • FDMC8884-F126

  • Manufacturer : ON Semiconductor
    Packaging : Tape & Reel (TR)
    Series : PowerTrench?
    Part Status : Obsolete
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 30V
    Current - Continuous Drain (Id) @ 25°C : 9A (Ta), 15A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
    Rds On (Max) @ Id, Vgs : 19 mOhm @ 9A, 10V
    Vgs(th) (Max) @ Id : 2.5V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 14nC @ 10V
    Vgs (Max) : ±20V
    Input Capacitance (Ciss) (Max) @ Vds : 685pF @ 15V
    Power Dissipation (Max) : 2.3W (Ta), 18W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Surface Mount
    Supplier Device Package : 8-MLP (3.3x3.3)
    Package / Case : 8-PowerWDFN
