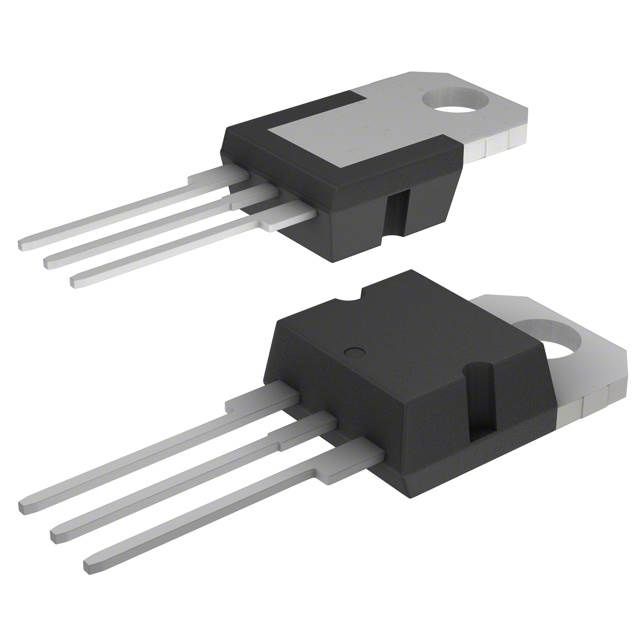

  • STP20N90K5

  • Manufacturer : STMicroelectronics
    Packaging : Tube
    Series : MDmesh? K5
    Part Status : Active
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 900V
    Current - Continuous Drain (Id) @ 25°C : 20A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 10V
    Rds On (Max) @ Id, Vgs : 250 mOhm @ 10A, 10V
    Vgs(th) (Max) @ Id : 5V @ 100μA
    Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
    Vgs (Max) : ±30V
    Input Capacitance (Ciss) (Max) @ Vds : 1500pF @ 100V
    Power Dissipation (Max) : 250W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : TO-220
    Package / Case : TO-220-3

極速報價

型號
 品牌 封裝 批號 查看
BTB16-800CWRG STMicroelectronics TO-220AB New 詳細
ST485EXN STMicroelectronics 8-DIP New 詳細
X-NUCLEO-NFC03A1 STMicroelectronics New 詳細
A21SP16J STMicroelectronics 9-FlipChip (1.6x1.6) New 詳細
TL1431ACL5T STMicroelectronics SOT-23-5 New 詳細
ST1S10PHR STMicroelectronics PowerSO-8 New 詳細
TS912AIYDT STMicroelectronics 8-SO New 詳細
M74HC4094YRM13TR STMicroelectronics 16-SO New 詳細
E-L5972D013TR STMicroelectronics 8-SO New 詳細
TS941IDT STMicroelectronics 8-SO New 詳細
L7806CP STMicroelectronics TO-220FP New 詳細
STFI34N65M5 STMicroelectronics I2PAKFP (TO-281) New 詳細
SMA6T10CAY STMicroelectronics SMA (DO-214AC) New 詳細
STEVAL-MKI138V1 STMicroelectronics New 詳細
LD3985J33R STMicroelectronics 5-FlipChip (1.59x1.24) New 詳細
LPY5150ALTR STMicroelectronics New 詳細
P0102MN 5AA4 STMicroelectronics SOT-223 New 詳細
STEVAL-VNH5050A STMicroelectronics New 詳細
LF60CDT-TR STMicroelectronics DPAK New 詳細
74VHC139TTR STMicroelectronics 16-TSSOP New 詳細
