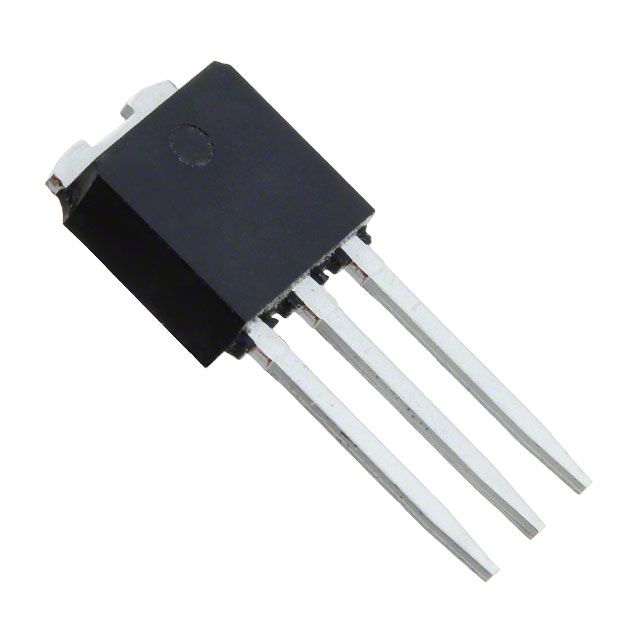

  • STD4NK80Z-1

  • Manufacturer : STMicroelectronics
    Packaging : Tube
    Series : SuperMESH?
    Part Status : Active
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 800V
    Current - Continuous Drain (Id) @ 25°C : 3A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 10V
    Rds On (Max) @ Id, Vgs : 3.5 Ohm @ 1.5A, 10V
    Vgs(th) (Max) @ Id : 4.5V @ 50μA
    Gate Charge (Qg) (Max) @ Vgs : 22.5nC @ 10V
    Vgs (Max) : ±30V
    Input Capacitance (Ciss) (Max) @ Vds : 575pF @ 25V
    Power Dissipation (Max) : 80W (Tc)
    Operating Temperature : -55°C ~ 150°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : I-PAK
    Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
