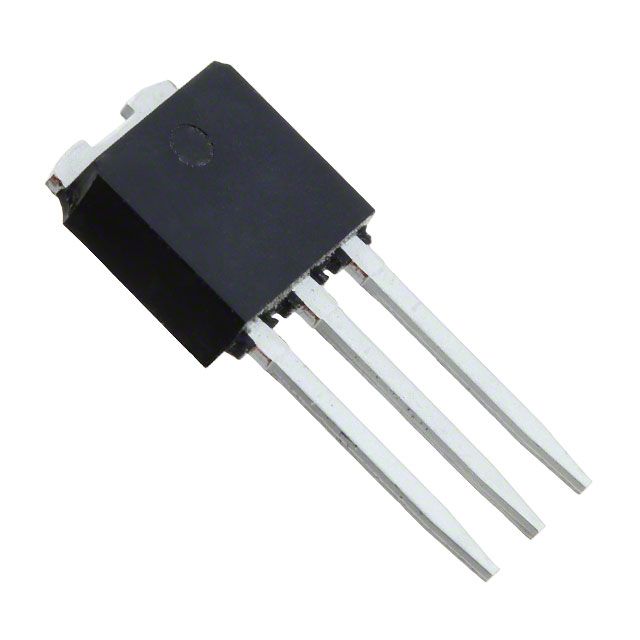

  • STD17NF03L-1

  • Manufacturer : STMicroelectronics
    Packaging : Tube
    Series : STripFET? II
    Part Status : Active
    FET Type : N-Channel
    Technology : MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) : 30V
    Current - Continuous Drain (Id) @ 25°C : 17A (Tc)
    Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
    Rds On (Max) @ Id, Vgs : 50 mOhm @ 8.5A, 10V
    Vgs(th) (Max) @ Id : 2.2V @ 250μA
    Gate Charge (Qg) (Max) @ Vgs : 6.5nC @ 5V
    Vgs (Max) : ±16V
    Input Capacitance (Ciss) (Max) @ Vds : 320pF @ 25V
    Power Dissipation (Max) : 30W (Tc)
    Operating Temperature : -55°C ~ 175°C (TJ)
    Mounting Type : Through Hole
    Supplier Device Package : I-PAK
    Package / Case : TO-251-3 Short Leads, IPak, TO-251AA

極速報價

型號
 品牌 封裝 批號 查看
LM2931AD50 STMicroelectronics 8-SO New 詳細
74VHC16245TTR STMicroelectronics 48-TSSOP New 詳細
STEVAL-IME014V1B STMicroelectronics New 詳細
STGF3NC120HD STMicroelectronics TO-220FP New 詳細
STD5N60DM2 STMicroelectronics DPAK New 詳細
TEA2025D STMicroelectronics 20-SO New 詳細
M74HC04RM13TR STMicroelectronics 14-SO New 詳細
STGP20M65DF2 STMicroelectronics TO-220 New 詳細
TN5015H-6T STMicroelectronics TO-220AB New 詳細
LM4041CICT-1.2 STMicroelectronics SOT-323-5 New 詳細
M27C4001-10F1 STMicroelectronics 32-CDIP Frit Seal with Window New 詳細
STGIPS30C60-H STMicroelectronics New 詳細
M5450B7 STMicroelectronics 40-PDIP New 詳細
Z0402MF0AA2 STMicroelectronics TO-202-3 New 詳細
STW12N120K5 STMicroelectronics TO-247 New 詳細
STTH102RL STMicroelectronics DO-41 New 詳細
TS9222IDT STMicroelectronics 8-SO New 詳細
HCF4093BEY STMicroelectronics 14-DIP New 詳細
BZW50-180B STMicroelectronics R-6 New 詳細
L99LD01TR-E STMicroelectronics 32-LQFP (7x7) New 詳細
